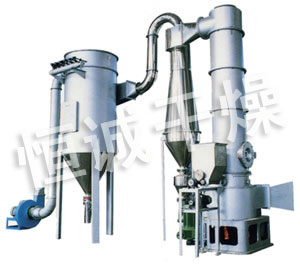

XSG Series Revolving Flash Vaporization Dryer
Description: The hot a ir enters into the bottom of the dryer in tangent direction.Under the driving of the stirrer,a powerful rotating wind area is formed.The paste s tate materials enter into the dryer through the s crew charger.
Details:

XSG Series Revolving Flash Vaporization DryerWorking Principle
  The hot a ir enters into the bottom of the dryer in tangent direction.Under the driving of the stirrer,a powerful rotating wind area is formed.The paste s tate materials enter into the dryer through the s crew charger.Under the powerful function effect of stirring at high-speed roation,the materials a re distributed under the function of s trike,friction and shearing force.The block state materials will soon be smashed and contact the hot air fully and the materials are heated and dried.The dried materials a fter the de-watering will go up with the hot-air flow.The grading rings will stop and keep the big particles.Small particles will be sidcharged out of the dryer from the ring center and will be collected in the cyclone and dust collector. The not-fully-dried or big piece materials will be sent to the wall of the equipment by centrifugal force and be smashed again after they fall down to the bottom .
Characteristics
◎This machine combines the whirl technology with the uidity .ejection and smashing step technologies.
◎The equipment is compact and small in size ,high in production ef ciency and continuous in the production  .It has realized that "a small equipment can perform the large production ".
◎The drying capacity for this machine is big but its energy consumption is low. Its heat ef ciency is ◎high.
◎The materiral stay time is very short .The quality of the nal products is very good,The machine can be used for drying
 the heat sensitive materials .
◎For the negative pressure or the micro-negative pressure operation ,the machine is good for its tightness and high in
 the ef ciency so as to eliminate the environmental pollution.
Material to dried
◎Organic compounds:Fenatrol(insecflclde of agrochemIcaIs),cadmium laurate,benzoic acid,
 germicide,sodium oxalate,cellulose acetate
◎Dyestuff:Antll raquinOne,black fe rric oxide,indigo blue pigment,butyric acid titanium hydroxide,zinc sulfuration,all
 kinds of inte rmediate of azo dry。stuff
◎Inorganic compounds:Borax,calcium carbonate,hydroxide,copper sulphide,ferric oxide,barium carbonate,
 antimony trioxide,all kinds of metallic hydroxide,kinds of heavy metallic salt,synthetic cryolite
◎Foodstuff:soya protein,agglomerative starch,lees,triticin,wheat starch.
XSG Series Revolving Flash Vaporization Dryer
XSG Series Revolving Flash Vaporization Dryer
Technical Parameter

Model XSG-2 XSG-4 XSG-6 XSG-8 XSG-10 XSG-12 XSG-16 XSG-20
ID of main machine,mm 200 400 600 800 1000 1200 1600 2000
Air amount,M3/h 350-500 1150-2000 2450-4500 4450-7550 7000-12500 10000-20000 18000-36000 28200-56500
Evaporated moisture,kg/h 12-17 40-70 80-150 150-250 230-4250 300-600 600-1000 1000-1500
Max equipped capacity,kw 10 20 40 65 85 105 150 230
Max,hight,m 4.0 4.8 5.8 6.5 7.1 7.8 8.8 10.1
Occupied area ,m2 15 20 28 35 40 52 80 150

Note:1 The evaporated amount ofmoistu reis calculatedwhenthetemperatu re ofinletis l80 CandIhetemperature of outletis180oCand the temperature of outlet is 180oC  2.Besides the models above mentioned,special specification can also be made as request;
  3.The equipped capacity above mentioned is standard.The power can also be decreased in accordance with pracitcal condition.

Raw materials to treated and characteristics(based on Model 6)

Name of raw material zinc stearate aluminum hydroxide zinc carbonate
insecticide

TMTD

DSD
acid
Ferric
oxide red
antimony
dioxide
cuprous
chloride
White
carbon
black
T of air inlet ,oC 150 180 150 120 140 150 200 180 200 280
Primary moisture ,% 80 55 80 30 65 60 60 45 30 85
Final moisture,% 0.5 1.5 1.0 1.0 0.5 0.5 0.5 1.0 3.0 5.0
Practical dry capacity,kg/h 140-160 250-280 130-170 80-110 80-120 80-120 300-350 280-320 290-310 250-300



Name of raw material ZDC
accelerant
ZDC
oil
soluble
ink
substitute
zinc
manganate
phthaloc-
yanin
dye
calcium
citrate
superfine
calcium
carbonate
slurry
treatment
agent
sodium
isocyanurate
dioxide

sodium
isocyanurate
trioxide


T of air inlet,oC 150 150 120 150 140 160 200 180 150
Primary moisture ,% 60 45 30 55 40 70 75 25 30
Final moisture,% 0.5 2.0 1.0 1.0 1.0 1.5 5.0 0.2-2 1.0
Practical dry capacity,kg/h 80-110 350-380 120-150 160-180 300-350 430-470 290-310 80-120 90-150
