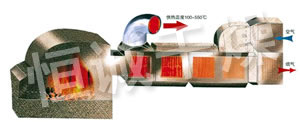

GMF Coal Combustion High-Temp Hot Air Furnace
Description: The drier is equipped with machanical line eject coal fuel, and is adopted. The heat exchanger can be choised in high-temperature palte, pipe and hot pipe. Its temperature of outlet is high, and heat factor is high, and the temperature of c leaning hot a ir is from 100 ℃ to 450 ℃. The technical parameters of drier is reached to advanced level in home.
Details:

Product introduction
   The drier is equipped with machanical line eject coal fuel, and is adopted. The heat exchanger can be choised in high-temperature palte, pipe and hot pipe. Its temperature of outlet is high, and heat factor is high, and the temperature of c leaning hot a ir is from 100 ℃ to 450 ℃. The technical parameters of drier is reached to advanced level in home.The drier is widly used for heating, drying, and hot shapping in chemical industry,foodstuff, mineral, building industry and so on.
GMF Coal Combustion High-Temp Hot Air FurnaceMaterial to be dried
◎Chemical indust r
◎rain processing
◎oodstu
◎uild
◎ood processin g ir condition
◎griculture e tile printing and d eing
◎r or produce damp removing and dr ing dr ing ood wood
◎dr ing ibre plate and compound plate dr ing
◎ot air sevice
Technical Parameter

Type Heat of output
(104kcal/h)
capacity of air out temp.of output
(oC)
coal consume
(kg/h)
fan type
GMF100 100
decided by output temperature
100-450 260-280 Y5-47NO5 7.5KW
GMF120 120 100-450 390-420 Y5-47NO5 7.5KW
GMF180 180 100-450 520-560 Y5-47NO6 15KW
GMF240 240 100-450 650-700 Y5-47NO6 18.5KW
GMF300 300 100-450 780-800 Y5-47NO8 22KW
GMF360 360 100-450 970-980 Y5-47NO8 30KW
GMF420 420 100-450 1040-1120 Y5-47NO8 30KW
GMF480 480 100-450 1300-1400 Y5-47NO9 45KW
GMF600 600 100-450 1560-1680 Y5-47NO10 55KW
GMF720 720 100-450 1750-200 Y5-47NO10 55KW
GMF780 780 100-450 1890-2180 Y5-47NO10 75KW
GMF960 960 100-450 2320-2700 Y5-47NO12 75KW
