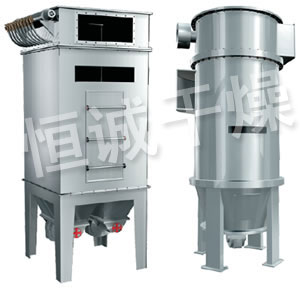

 Product introduction
On the basis of MF- I spec, the square spec pulse dust filter with cloth bag MF- II is the amended and improved one.
Characteristics
In addition to the advantages that I spec is high in the dust removing efficiency, big in the air capacity , stable in the performance, easy in operation and maintenance, MC- II has the better result than MC- I. Such as: it is not easy to build up the powder and its application is wide and so on.
Material to be dried
The device is widely used for the ventilation, dust removing and powder restoration in the grain, food, feed, metallurgical, chemical, building material,medical and other industries.
Technical Parameter
| Parameter |
Model |
| MF48 |
MF60 |
MF72 |
MF84 |
MF96 |
MF108 |
MF120 |
| Area to be filterde（m2） |
36.2 |
45.2 |
54.3 |
63.3 |
72.4 |
81.4 |
90.5 |
| Quantity of filtering bag (piece) |
48 |
60 |
72 |
84 |
96 |
108 |
120 |
| Filtered air amount of (m3/h) |
6510-8680 |
8130-10840 |
9770-13000 |
11400-1520 |
13000-17370 |
14650-19530 |
16290-21700 |
Quantiyt of solenoid valve
（piece） |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
| Power(kw) |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
2.2 |
2.2 |
| Bag size(mm) |
120×2000 |
| Speed of filtering air(m/min) |
3-4 |
| Ratio of air leakage (%) |
≤5 |
| Pressure of apraying and blowing (MPa) |
＞0.4-0.6 |
| Resistance of equipment (Pa) |
＜1200 |
| Efficiency of dust removing (%) |
≥99.9（Can select suitable filtering material as per the powder characterisitic） |
Technical Parameter
| Parmeter |
Model |
| MF48 |
MF60 |
MF72 |
MF84 |
MF96 |
MF108 |
MF120 |
| A |
3530 |
3530 |
3530 |
3530 |
3530 |
3530 |
3530 |
| B |
3287 |
3287 |
3287 |
3287 |
3287 |
3287 |
3287 |
| C |
2552 |
2552 |
2552 |
2552 |
2552 |
2552 |
2552 |
| D |
1160 |
2260 |
1160 |
1160 |
1160 |
1160 |
1160 |
| E |
1350 |
1650 |
1950 |
2250 |
1350 |
2850 |
3150 |
| F |
1350 |
1350 |
1350 |
1350 |
1350 |
1350 |
1350 |
| G |
635 |
635 |
635 |
635 |
635 |
635 |
635 |
| H |
325 |
475 |
625 |
775 |
925 |
1075 |
1225 |
| I |
1586 |
1586 |
1586 |
1586 |
1586 |
1586 |
1586 |
| J |
790 |
790 |
790 |
790 |
850 |
850 |
850 |
| K |
824 |
824 |
824 |
824 |
824 |
824 |
824 |
| M×N |
400×500 |
500×500 |
600×500 |
700×600 |
700×600 |
800×600 |
800×600 |
| P×Q |
432×530 |
530×530 |
630×530 |
728×630 |
728×630 |
832×630 |
832×630 |
| R×S |
1050×1050 |
1350×1050 |
1650×1050 |
1950×1050 |
2250×1050 |
2250×1050 |
2850×1050 |
|
